Three low-Z audio outputs are available from this circuit, using a quad TL084 FET amplifier. The input is high
impedance. Vcc can be 6 to 12 V for typical applications.

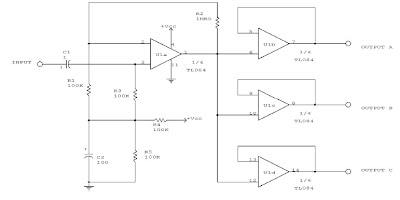

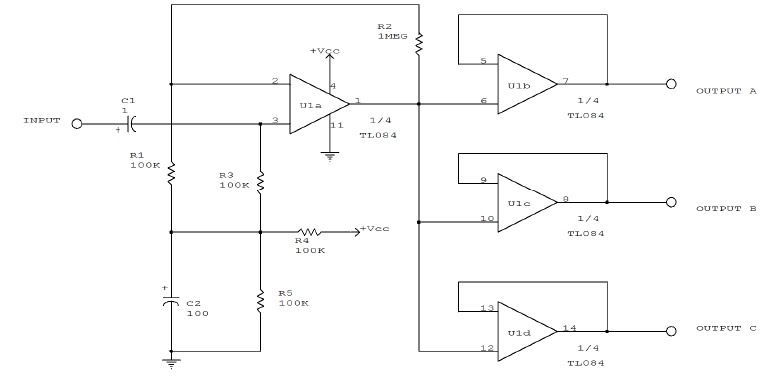

Circuit Diagram
